5 critical ways to protect cities from disastrous flooding

Storms and flash floods are becoming more severe and more frequent in the United States, and cities need to brace themselves. Five landscape architects explain how.

5 critical ways to protect cities from disastrous flooding
[Photo: David Dee Delgado/Getty Images]
advertisement
advertisement
advertisement

On Thursday morning last week, New Yorkers woke up to an all-too-familiar sight. Sandbags lined ground-floor retail stores. Water pumps gushed water from basement garages. And the subway system, the stations and tunnels of which had flooded the night before, was largely suspended. The remnants of Hurricane Ida, which had torn through New Orleans earlier that week, discharged more than half a foot of water on the New York region. New York City was drenched in as much rainfall in one single hour as Chicago averages in a whole month.

advertisement
advertisement

As a result of climate change, storms and flash floods are becoming more severe and more frequent than ever in the United States. Cities need to brace themselves, but many of the solutions at play are exclusively engineering-driven, with hard barriers like seawalls and flood gates, which are prone to fail. When Hurricane Katrina made landfall in Louisiana, breaches in levees and floodwalls all over New Orleans left 80% of the city underwater. Likewise, in July this year, a dam along the river Rur in Germany couldn’t withstand the heavy flooding caused by Cyclone Bernd and burst, causing over 150 deaths.

So what should cities do to protect themselves? I reached out to five landscape architects and urban designers who have been invested in city-wide, design-driven initiatives against climate change for years. Some called for managed retreat, the controversial yet increasingly prescribed proposal to relocate people who are in high-risk zones. But for the most part, they agreed that such drastic measures may not be needed if cities adopt more resilient design strategies. That includes a mix of hard and soft infrastructure, with everyone agreeing that cities have to increase their ability to absorb water. Think permeable surfaces, green roofs, and other features that make room for water rather than pushing it back. In their telling, the city of the future is a sponge.

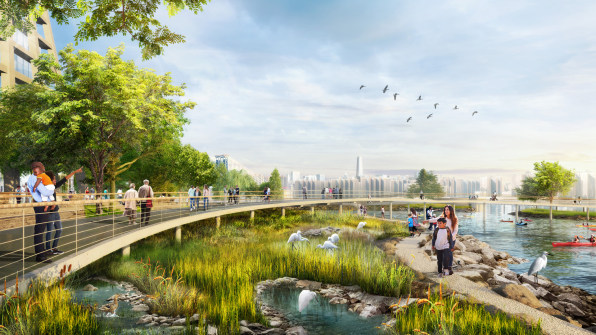

Brooklyn’s River Ring. [Image: James Corner Field Operations and BIG – Bjarke Ingels Group]
Build sponge parks

advertisement

Take Sponge Park in Gowanus, Brooklyn. In 2016, the design firm DLANDstudio completed a pilot for the park, which re-directs, holds, and treats nearly 2 million gallons of stormwater per year. “Making city streets and roofs more permeable and sponge-like can help reduce flooding,” says Susannah Drake, a principal and founder of DLANDstudio. The technology to install sponge parks, bioswales, green roofs, and permeable pavers is available, Drake says, it’s just a matter of will. “Our parks and street tree planters can hold more water if designed and maintained properly,” she says. “It is a lot cheaper, and a lot more responsible, to maintain than it is to rebuild again, and again, and again, and again…”

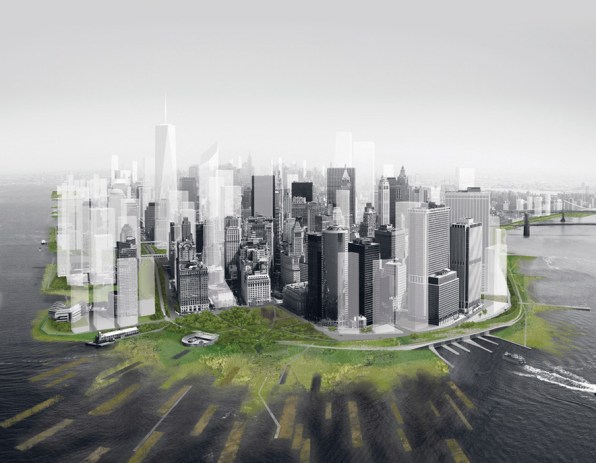

MoMA Rising Currents [Image: courtesy DLANDstudio]

In 2010, the Museum of Modern Art invited DLANDstudio alongside Architecture Research Office to re-imagine Lower Manhattan in response to rising sea levels. The proposal featured two components: “a softened, buffered edge to manage storm surge and permeable streets for absorbing heavy rain,” Drake says.

Softness is key. As she points out, water will travel where it is pushed. “Hard walls can redirect water with disastrous consequence,” she says. Unlike landscapes that dissipate the force of a large wave, she says hard walls “give people a sense of false confidence.”

advertisement

But time is a big constraint. “Curing concrete [to make barriers] takes 28 days, while it can take years for coastal landscapes to get established,” she says. “The key is a mix of both.”

Understand watersheds

Beka Sturges, a partner and principal of landscape architecture firm Reed Hilderbrand, echoed Drake’s sentiment. “Coastal areas need to become more spongy,” she says. “This means more trees, more soil, more green roofs, more porosity in the surfaces of our built environment.”

advertisement

[Image: courtesy Reed Hilderbrand]
Sturges says we can’t fight water until we understand how our watersheds work, and where the water goes as it reaches the lowest points in our cities. “Education and regulation at the local, regional, and federal levels are critical,” she says, highlighting a “mind-blowing” water treatment center in New Haven – the Lake Whitney Water Treatment Plant: “It calls attention to its purpose and invites citizen awareness through its education programs, its beloved park setting, and its futuristic architecture.”

[Image: courtesy Reed Hilderbrand]
For Sturges, water shouldn’t be considered a problem. “Instead, we might start to think of the ground as alive, as something precious and vulnerable and loved,” she says. A properly managed ground can help store and direct water so we can continue to live safely along the coast.

In Bridgeport, Connecticut, the studio is working on a project to protect the South End of the city from chronic and acute flooding. Sturges says the proposal relies on a “rigorously engineered seawall” combined with green infrastructure. “In general, I believe we should make room for water, but there are many situations where we need both,” she says.

advertisement

Prepare for the worst—and protect the power grid

“Preparation and more preparation, that is what countries that are successfully supporting their urban economies have done,” says Claire Weisz, an architect and founding principal at WXY, an architecture and urban design studio that specializes in public spaces and resilient design.

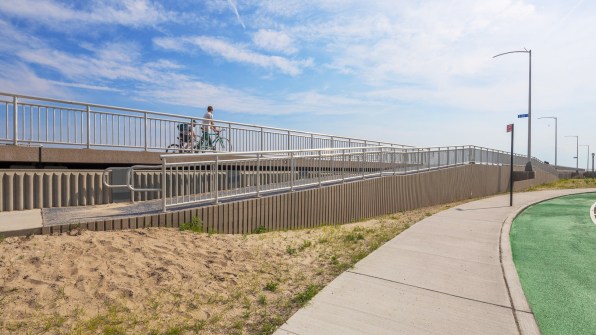

Rockaway Boardwalk Reconstruction by WXY Studio. [Photo: Amy Barkow/courtesy WXY Studio]
Weisz says that cities can prepare for floods by increasing the storage capacity of streets and cities through new pipes. They can also require planted roofs at a large scale. “Suburbs, cities, and industry have been building in former wetlands, deltas, marshland, floodplains, and over brooks and streams for hundreds of years,” Weisz says. But unlike earlier populations of indigenous communities and others that depend on a deep understanding of water events, we have accepted an industrialized view that “society can engineer their way out of any condition.” We just built and left it up future generations to fix our mistakes.

advertisement

For Weisz, protecting the power grid is more important than building walls, particularly in low-lying neighborhoods like Red Hook and Greenpoint, both in Brooklyn, which are more prone to flooding than other parts of the city. “Power is critical to small business and flooding is very often followed by power outages,” she says. ‘Small business needs more access to alternative energy generation and battery powered energy storage.”

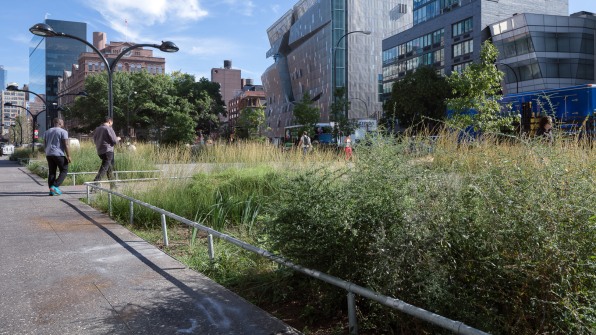

[Photo: Wade Zimmerman/courtesy WXY Studio]
In the end, Weisz echoes Drake and Sturges in arguing that cities should make room for water, not deflect it. “Ideas like daylighting former streams and returning water flow to cities make for exciting places,” she says, highlighting the Saw Mill River in downtown Yonkers , which was daylighted in 2016. “Who knows, it might be a good investment for New York City to make Canal Street a canal again.”

Consider all options

advertisement

“Thinking out of the box and inventing creative responses that are informed and inspired by each particular situation marks the best way forward,” says James Corner, the founder and CEO of Field Operations, a landscape and urban design practice based in New York City. For Corner, the key to protecting cities lies in a dual approach: reducing impervious surfaces and increasing absorptive landscapes. The former category would target parking lots, roofs, and any hard surfaces where “stormwater simply gathers in quantity and momentum when it isn’t in any way absorbed or slowed down.” The latter would mean building more floodplains, wetlands, and marshes, but also investing in green roofs, pocket parks, and green infrastructure to help collect, store, and manage water.

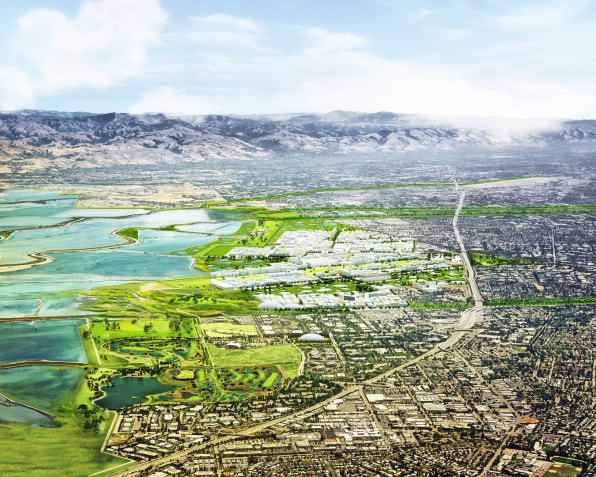

South Bay Sponge. [Image: courtesy James Corner Field Operations]
Ultimately, his approach is to design for environmental resilience. In San Francisco’s South Bay, the studio has proposed protecting low-lying lands with absorptive landscapes that collect, filter, and dispersing floodwaters during storms. And in Seattle’s Central Waterfront, it has been working on a seismically resistant seawall that integrates a salmon migration corridor, a restored kelp forest, and a permeable promenade. Corner says he prefers soft barriers over hard walls, but more infrastructural engineered solutions like flood barriers and levees may make sense when site conditions are extremely limited. “There is a perception of either/or, but in fact it is and/also,” he says.

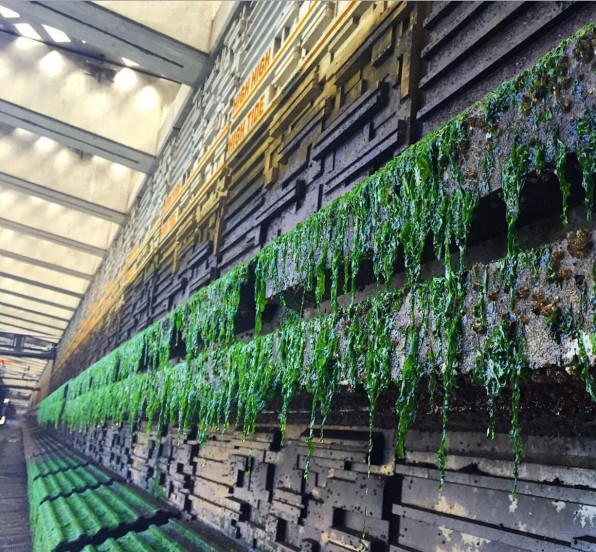

Seattle’s Central Waterfront. [Image: Elliott Bay Seawall Replacement Project/courtesy James Corner Field Operations]
On one end of the spectrum, Corner highlights the importance of “living shorelines” that provide a degree of protection but also double up as parkland for people and habitat for biodiversity. On the other, he recognizes that some cities may need to consider relocating people and structures in the most vulnerable areas. “In the longer term, migrating people and structures away from the danger zones to safer ground makes a lot of sense, albeit politically enormously challenging,” he says, noting that many disadvantaged communities live in the most threatened areas, which puts a burden on them and further exacerbates inequity. “Managed retreat may very well not only reduce the loss of life, buildings, and infrastructure in vulnerable areas but also balance some of the social inequities that exist in our cities,” he says.

advertisement

Managed retreat

Illya Azaroff, the director of design at +Lab Architect, and the founding co-chair of the AIA New York Design for Risk & Reconstruction Committee, has a similar perspective. “Ultimately, coastal cities need to rethink their living patterns, rezoning and moving people from flood zones through managed retreat over the long run,” he says. “Buyouts and relocation from identified critical high-risk areas should be initiated.”

To be clear, Azaroff is also a proponent of turning cities into sponges. He proposes increasing stormwater capacity with water harvesting cisterns, bioswales, and holding tanks on every building and property. “Ecosystems that absorb water to lessen the impact of disasters have multiple benefits including the ability to cool cities,” he says. “Let’s not forget that this should be an all-hazard approach and not a single hazard approach. Extreme heat is still the number one killer of all disasters.”
