A major new building is rising on the expansion of Microsoft’s corporate campus outside of Seattle. Unlike other recent architectural escapades from tech companies, it’s not a circular spaceship or a swirling glass mountain or even a starchitect-designed indoor-outdoor park. Microsoft’s new building is an energy plant.
The Thermal Energy Center is the unlikely centerpiece of a 3-million-square-foot addition to the tech giant’s campus in Redmond, Washington. As its straightforward name suggests, the building will be the hub of the expansion’s new energy system, which will power the campus almost entirely through electricity provided by geothermal energy exchanges.

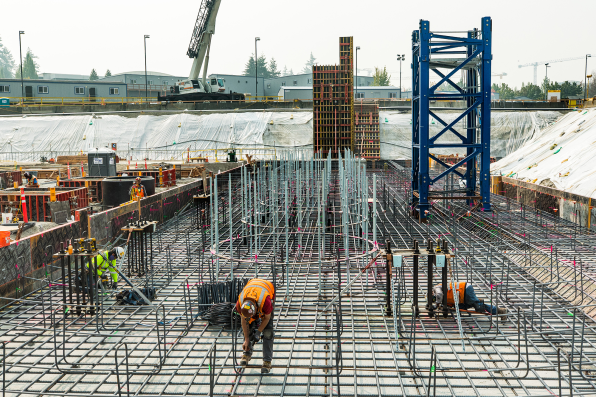

Designed by Seattle-based architects NBBJ, with engineering by AEI, the center will house dozens of 65-foot-tall thermal energy tanks that will be warmed by hundreds of geothermal wells drilled 550 feet into the ground. Through a system of heat pumps, chillers, and 220 miles of pipe running throughout the campus, the Thermal Energy Center will use the constant temperatures found deep below the Earth’s surface to heat and cool the new office buildings when they open beginning in 2023. The system eliminates the need for conventional gas boilers and electric chillers, cutting electricity use by an estimated 50%.
“We were really excited about the potential to use the Earth’s natural systems to heat and cool our buildings, but also just to use a new technology and to prove that it can scale to the size of the campus that we have,” says Katie Ross, Microsoft’s head of real estate sustainability. “Zero-carbon campuses are something that can be built today.” This is not the first geothermal power system to be deployed, but Microsoft believes it is one of the biggest in North America.
In 2020, Microsoft set the goal of becoming carbon negative by 2030, meaning it would more than offset its carbon emissions completely. A big part of meeting this goal, Ross says, is eliminating fossil fuels from its new campus. For a company as big and as energy-intensive as Microsoft—think rooms full of whirring computers, a fleet of electric vehicles, and 10,000 meals being cooked daily in its cafeterias—there are a lot of fossil fuels to replace. “All of our heating and our cooling, the HVAC systems, these need to be all electric,” Ross says.

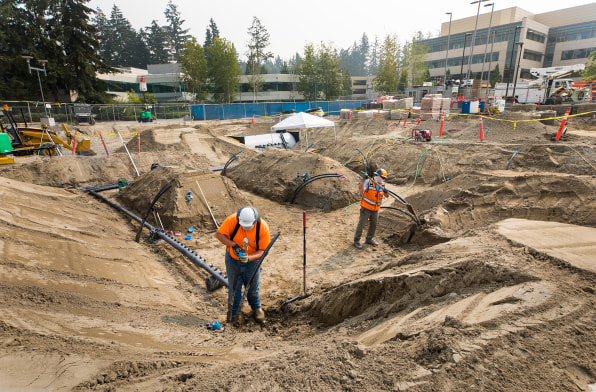

A geothermal exchange system proved to be a viable alternative. About 875 geowells have been drilled across a 2.5-acre section of the campus, which has been under construction since 2018. Once the system is complete, these wells will provide a constant temperature through the new buildings, naturally heating and cooling them, and solar panels will generate the additional electricity they require. Other renewable energy sources, like wind and solar, can provide more power than geothermal, but can also take up more space, and often rely on existing transmission networks. Geothermal, when done at this scale, provides the amount of electricity and savings that Microsoft needs, while also avoiding the intermittency issues with wind and solar when the air is still or cloudy.
However, relying on a geothermal system has some limitations. The amount of heating and cooling it can provide is directly linked to the number of wells drilled, so Microsoft had to decide early on the upper limit of electricity its new campus would need, rather than counting on adding an extra gas boiler as energy needs rose. “There were a lot of conversations about limiting the total amount of energy in these buildings,” Ross says. “We don’t make decisions lightly. We use data to make those decisions,” including energy use intensity modeling and projections about the future of remote or hybrid work and daily office occupancy.
In collaboration with NBBJ, the system was designed to accommodate the estimated energy needs. “It was sized such that it allowed for a diversity of different uses across the campus, so I don’t think it’s a huge risk,” says Margaret Montgomery, NBBJ’s director of sustainability. “It means that we really have to live within finite limits.”
Montgomery says Microsoft is likely the first major U.S. company to build its own geothermal system, but expects others to follow. “It really helps to have major companies like Microsoft doing this, and be able to go to our other clients and say we really need to look at electrification here. We can’t continue to design buildings that require fossil fuels. Let’s [electrify] now so we don’t have to retrofit it in 10 years,” she says. “That’s a drumbeat we’re hitting with our clients as much as possible.”
Making the Thermal Energy Center a showpiece of the new campus expansion could help. For Microsoft and NBBJ, putting this emerging energy alternative on display is a way of showing that new conventions are possible.
“I think there’s a way for these buildings to be opportunities to inform the public about these kinds of efforts and breed awareness,” says NBBJ architect Chris Beza. “As a totem, it could be a way that we can share our Thermal Energy Center work and inspire other designers to explore the same.”
Ross says it was important that the Thermal Energy Center be “not just some building at the bottom of a garage that no one sees,” but one that is visible to employees, customers, and the public. The center will even have a section with a self-guided tour where visitors can look inside and learn about how it all works.
“It is how the campus functions, and it is such a physical representation of all our sustainability values and how we think differently about delivering a campus,” Ross says. “We think of our campus as a living lab.”
